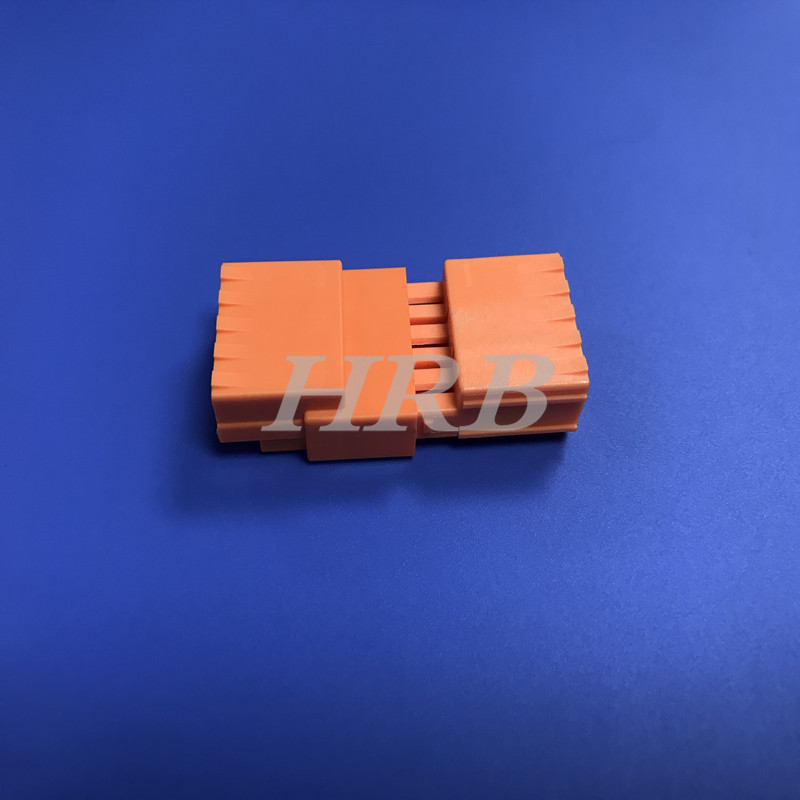

HRB 快速对插LED筒灯连接器 3PIN UL认证齐全 M5600

1) Current Rating: 6A AC, DC max

2) Voltage Rating: 600V AC, DC

3) Temperature range: -40ºC to +130ºC

4) Contact Resistance: 10mΩ max

5) Insulation Resistance: 1000MΩ min.

6) Withstanding Voltage: 2200V AC/minute

7) Material: NylonUL94V-0

Terminal: Copper alloy. Tin plated.

8) Applicable: AWG#18, wire stripping: 8mm

9) Passed the finger electrical shot tesing

CSACC22.2 NQ. 182.2-M1987

Product Features:

1). Wire to wire 3-Pole LED lighting connector.

2). Compact size design for space saving.
3). Perfect for OEM or retrofit lighting applications.
4). Push-in technology results in quicker connections, saving time and increasing productivity.
5). Passes UL 1977&CSA 182.3, finger probe requirements
6). Fits through 1/2 in. knockout
7). Tool free design for field installation, pieces pull apart safely and easily
8). 3/8 in. strip length indicator
9). Low profile design.

Application(wire to wrie):

1). LED Lighting connecti
状态:
数量:
  • M5600

  • HRB

  • M5600

HRB inline M5600 series connector helps reduce electrical shock hazard during ballast replacement by safely disconnecting hot and neutral ballast wiring. Both side of connectors meet UL and CSA safety requirements. The connector is available in 3 pole with options for new installations or ballast retrofitting. Advanced push-in technology provides fast, efficient ballast connections resulting in reduced installation times and improved labor savings.


Product Features:

1). Wire to wire 3-Pole LED lighting connector.

2). Compact size design for space saving.
3). Perfect for OEM or retrofit lighting applications.
4). Push-in technology results in quicker connections, saving time and increasing productivity.
5). Passes UL 1977&CSA 182.3, finger probe requirements
6). Fits through 1/2 in. knockout
7). Tool free design for field installation, pieces pull apart safely and easily
8). 3/8 in. strip length indicator
9). Low profile design.

Application(wire to wrie):

1). LED Lighting connection between Power and Luminant, luminaire disconnect, luminaire lighting.

2). Downlight connector.
3). Can Lighting connector.
4). Pannel Lighting connector.
