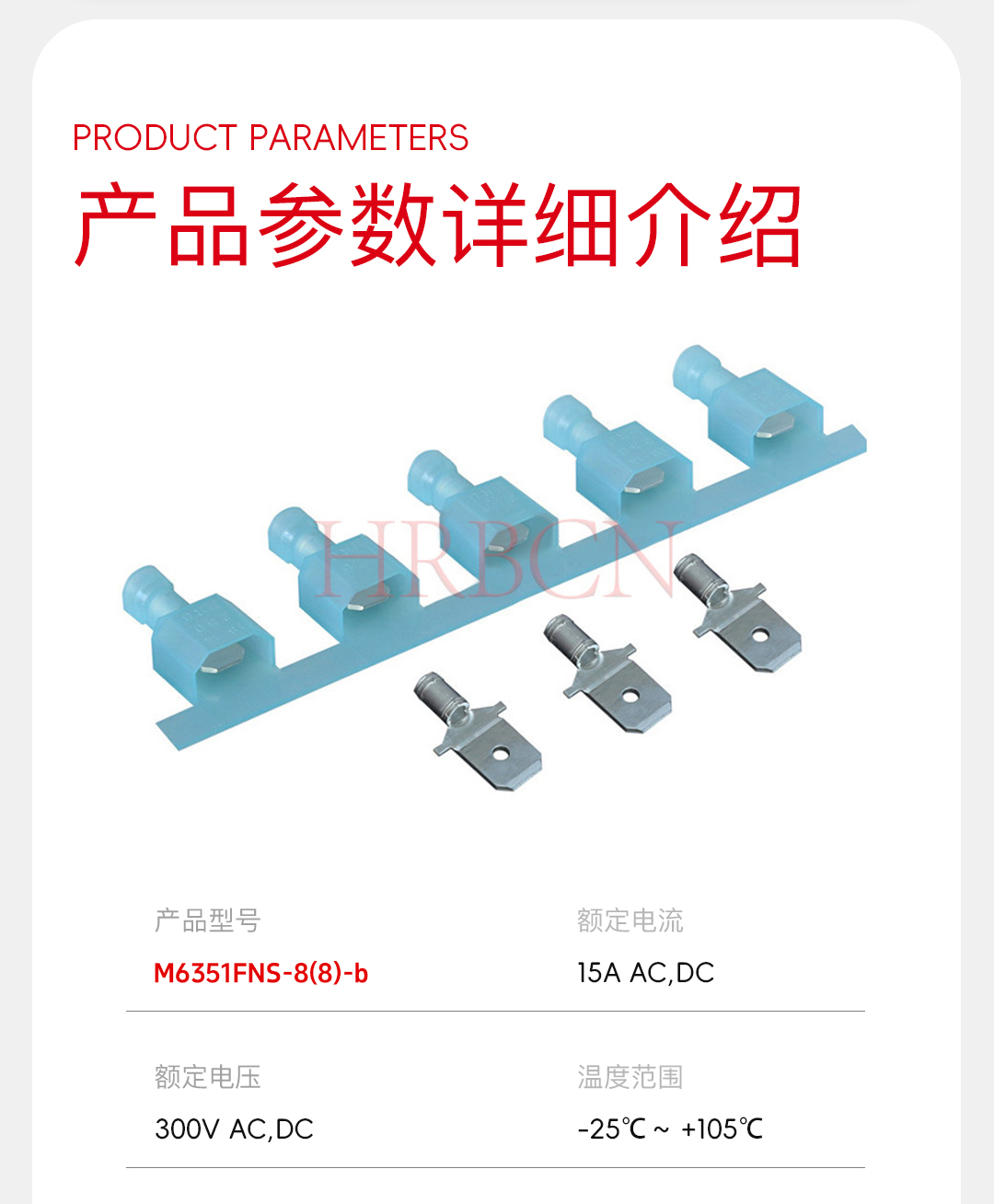

M6351FNS-8（8）-b
HRB
M6351FNS-8（8）-b
(187) straight faston male terminal.pdf

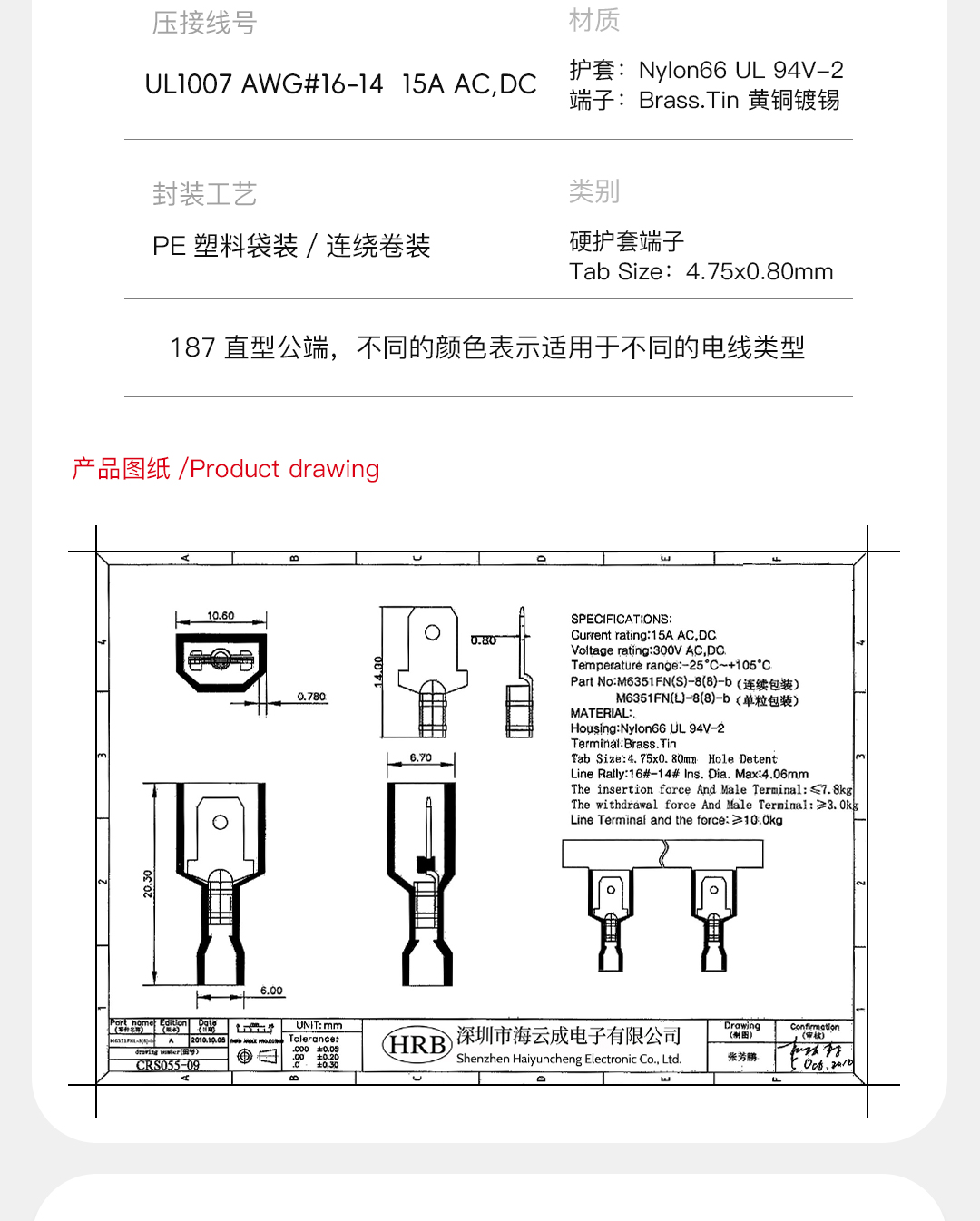

| Part No | A | B | C | D | E | F | G | H | Wire size | Ins. Dia. max | Tab hole |
| M6351FN(S)-8(5)-b1 | 0.75 | 10.60 | 8.30 | 6.70 | 22.50 | 6.30 | 14.00 | 0.50 | AWG#16-#14 | 6.60mm | Through hole type |
| M6351FN(S)-8(5)-b1(A) | 0.75 | 10.60 | 8.30 | 6.70 | 22.50 | 6.30 | 14.00 | 0.50 | AWG#16-#14 | 6.60mm | Blind hole type |
| M6351FN(S)-8(5)-b | 0.78 | 10.60 | 6.00 | 6.70 | 20.30 | 6.30 | 14.00 | 0.50 | AWG#16-#14 | 4.06mm | Through hole type |
| M6351FN(S)-8(5)-b(A) | 0.78 | 10.60 | 6.00 | 6.70 | 20.30 | 6.30 | 14.00 | 0.50 | AWG#16-#14 | 4.06mm | Blind hole type |
| M6351FN(S)-8(8)-b | 0.78 | 10.60 | 6.00 | 6.70 | 20.30 | 6.30 | 14.00 | 0.80 | AWG#16-#14 | 4.06mm | Through hole type |
| M6351FN(S)-8(5)-b(A) | 0.78 | 10.60 | 6.00 | 6.70 | 20.30 | 6.30 | 14.00 | 0.80 | AWG#16-#14 | 4.06mm | Blind hole type |
| M6351FN(S)-8(5)-R | 0.78 | 10.60 | 5.10 | 6.70 | 20.30 | 6.30 | 14.00 | 0.50 | AWG#22-#18 | 3.05mm | Through hole type |
| M6351FN(S)-8(5)-R1 | 0.78 | 12.30 | 7.30 | 7.50 | 23.70 | 6.30 | 15.60 | 0.50 | AWG#22-#18 | 5.84mm | Through hole type |
| M6351FN(S)-8(5)-R(A) | 0.78 | 10.60 | 5.10 | 6.70 | 20.30 | 6.30 | 14.00 | 0.50 | AWG#22-#18 | 3.05mm | Blind hole type |
| M6351FN(S)-8(5)-R1(A) | 0.78 | 12.30 | 7.30 | 7.50 | 23.70 | 6.30 | 15.60 | 0.50 | AWG#22-#18 | 5.84mm | Blind hole type |
| M6351FN(S)-8(8)-R1(A) | 0.78 | 12.30 | 7.30 | 7.50 | 23.70 | 6.30 | 15.60 | 0.50 | AWG#22-#18 | 5.84mm | Blind hole type |
| M6351FN(S)-8(8)-R1 | 0.78 | 12.30 | 7.30 | 7.50 | 23.70 | 6.30 | 15.60 | 0.50 | AWG#22-#18 | 5.84mm | Through hole type |
| M6351FN(S)-8(8)-R | 0.78 | 10.60 | 5.10 | 6.70 | 20.30 | 6.30 | 14.00 | 0.80 | AWG#22-#18 | 3.05mm | Through hole type |
| M6351FN(S)-8(8)-R(A) | 0.78 | 10.60 | 5.10 | 6.70 | 20.30 | 6.30 | 14.00 | 0.80 | AWG#22-#18 | 3.05mm | Blind hole type |
| M | 6351 | F | N | S | 8 | (5) | R1 | (A) |
| A | B | C | D | E | F | G | H | J |

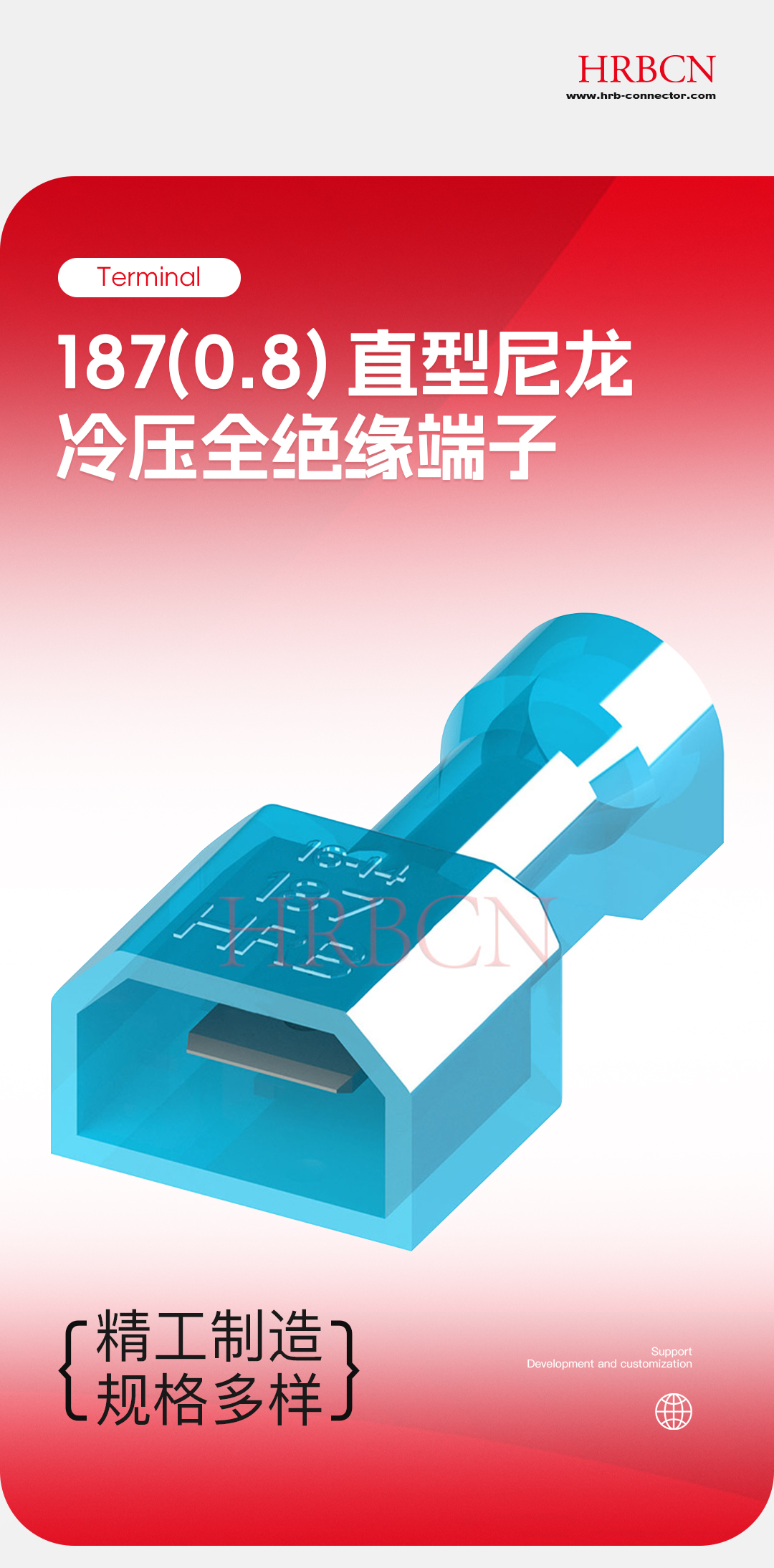

Terminal Type = Tab with hole
Proprietary Name = Ultra-Fast
Mating Area Interface Dimensions = 4.75 x 0.80 mm/4.75x0.5mm
Brass Material
Insulation Diameter = 3.05 Max. mm
Wire Range =16-14AWG
Packaging method: loose piece
