M6350FNS-8（8）-R
HRB
M6350FNS-8（8）-R
(187) faston straight female terminal catalog.pdf

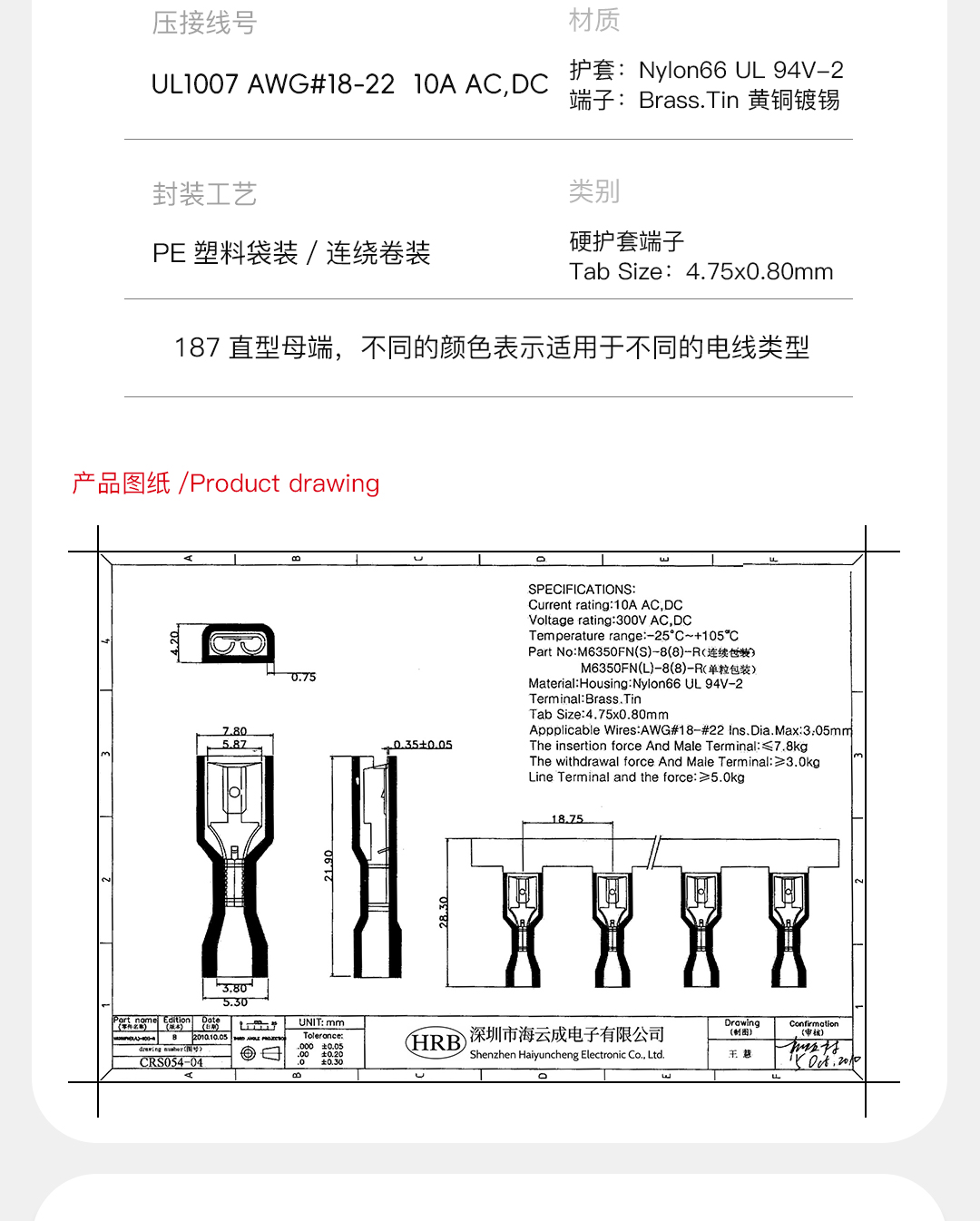

| Part No. | A | B | C | D | E | F | G | H | I | Wire size | Ins. Dia. max |
| M6350FN(S)-8(5)-R1 | 4.20 | 0.75 | 7.80 | 5.87 | 6.15 | 7.60 | 0.35 | 23.90 | 30.40 | AWG#22-#18 | 5.84mm |
| M6350FN(S)-8(5)-R | 4.20 | 0.75 | 7.80 | 5.87 | 3.80 | 5.30 | 0.35 | 21.90 | 28.30 | AWG#22-#18 | 3.05mm |
| M6350FN(S)-8(5)-b1 | 4.70 | 0.75 | 7.80 | 5.87 | 6.85 | 8.30 | 0.35 | 23.90 | 30.30 | AWG#16-#14 | 6.60mm |
| M6350FN(S)-8(5)-b | 4.70 | 0.75 | 7.80 | 5.87 | 4.30 | 5.80 | 0.35 | 21.90 | 28.30 | AWG#16-#14 | 4.06mm |
| M6350FN(S)-8(8)-R1 | 4.20 | 0.75 | 7.80 | 5.87 | 6.15 | 7.60 | 0.35 | 23.90 | 30.40 | AWG#22-#18 | 5.84mm |
| M6350FN(S)-8(8)-R | 4.20 | 0.75 | 7.80 | 3.80 | 5.30 | 7.60 | 0.35 | 21.90 | 28.30 | AWG#22-#18 | 3.05mm |
| M6350FN(S)-8(8)-b1 | 4.70 | 0.75 | 7.80 | 5.87 | 6.85 | 8.30 | 0.35 | 23.90 | 30.30 | AWG#16-#14 | 6.60mm |
| M6350FN(S)-8(8)-b | 4.70 | 0.75 | 7.80 | 5.87 | 4.30 | 5.80 | 0.35 | 21.90 | 28.30 | AWG#16-#14 | 4.06mm |
| M | 6350 | F | N | S | 8 | (5) | R1 |
| A | B | C | D | E | F | G | H |

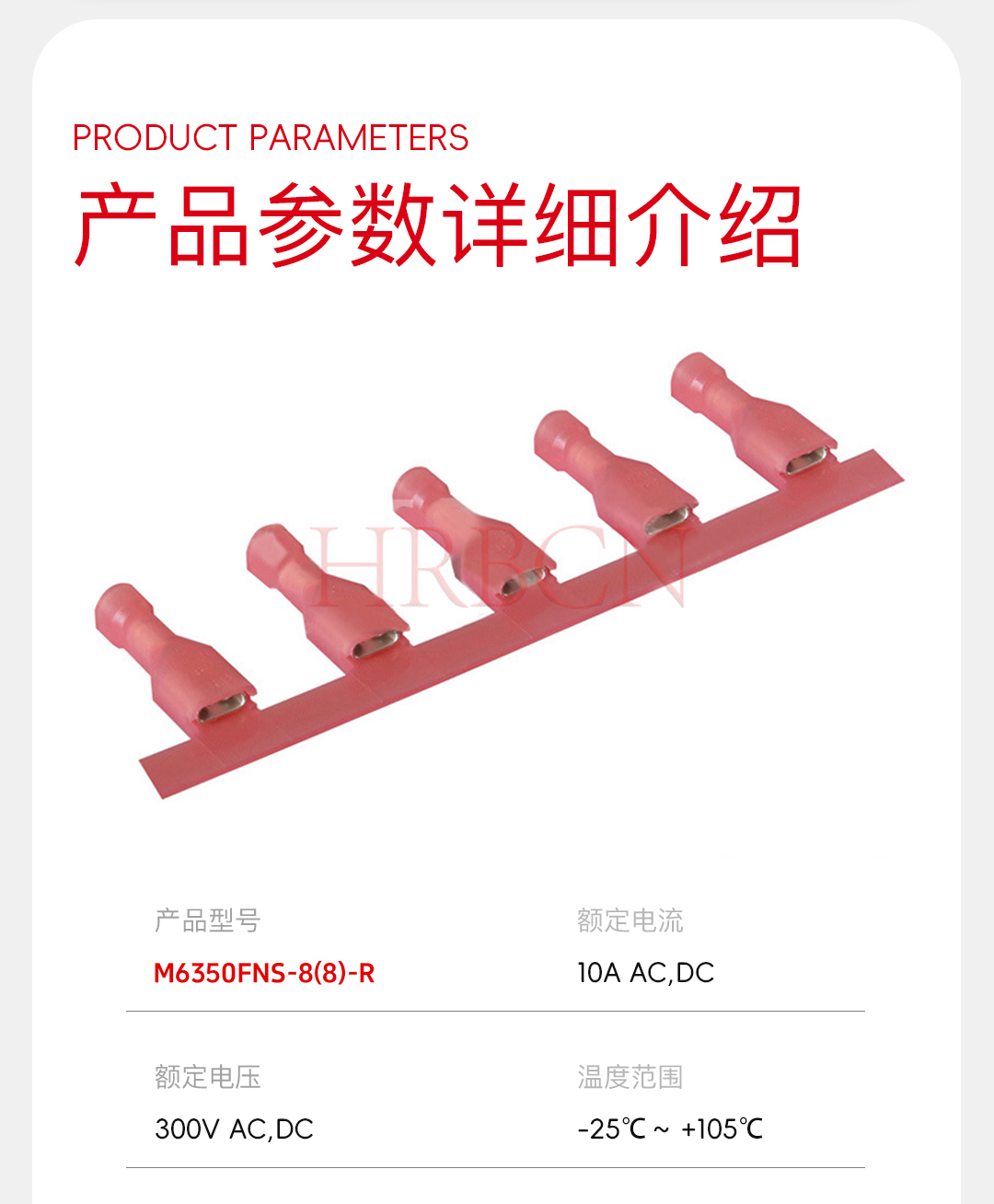

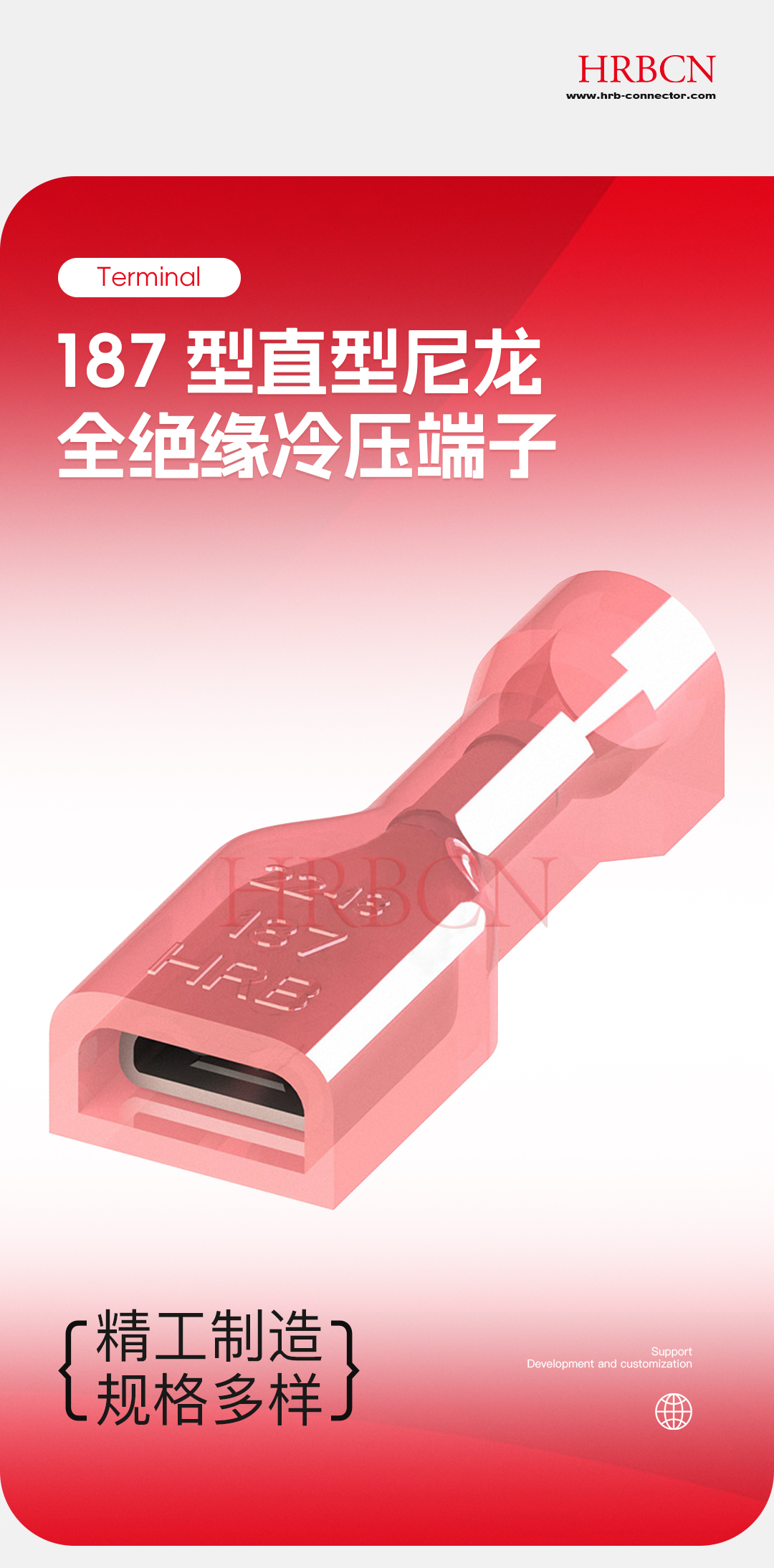

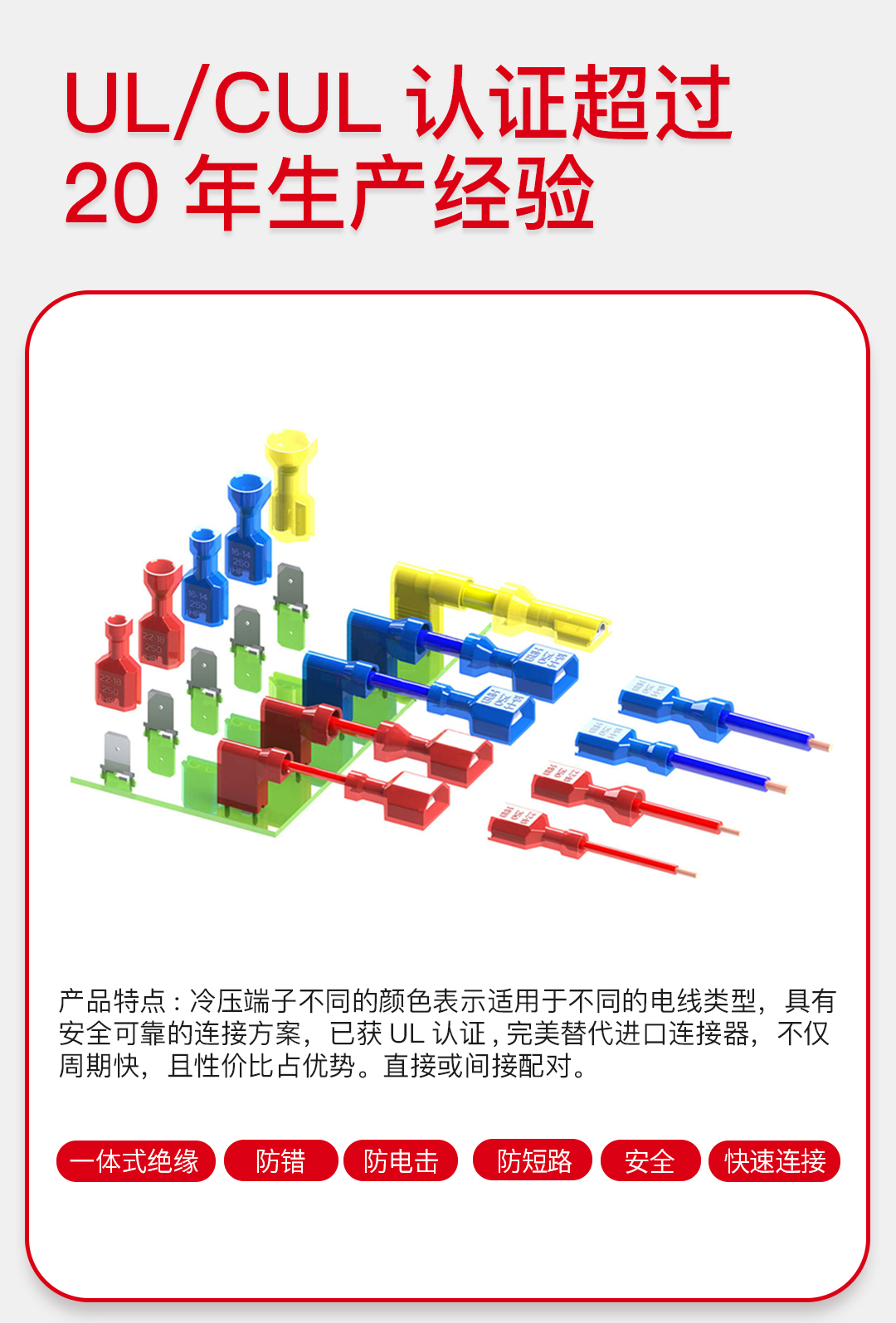

Terminal Type = Receptacle
Proprietary Name = Ultra-Fast
Receptacle Style = Straight
Mating Area Interface Dimensions = 4.75 x 0.5 mm/4.75-x0.8mm
Brass Material
Insulation Diameter = 3.05 Max. mm
Wire Range =UL1007 22-18AWG
Packaging method: strip
(187) faston straight female terminal catalog.pdf
| Part No. | A | B | C | D | E | F | G | H | I | Wire size | Ins. Dia. max |
| M6350FN(S)-8(5)-R1 | 4.20 | 0.75 | 7.80 | 5.87 | 6.15 | 7.60 | 0.35 | 23.90 | 30.40 | AWG#22-#18 | 5.84mm |
| M6350FN(S)-8(5)-R | 4.20 | 0.75 | 7.80 | 5.87 | 3.80 | 5.30 | 0.35 | 21.90 | 28.30 | AWG#22-#18 | 3.05mm |
| M6350FN(S)-8(5)-b1 | 4.70 | 0.75 | 7.80 | 5.87 | 6.85 | 8.30 | 0.35 | 23.90 | 30.30 | AWG#16-#14 | 6.60mm |
| M6350FN(S)-8(5)-b | 4.70 | 0.75 | 7.80 | 5.87 | 4.30 | 5.80 | 0.35 | 21.90 | 28.30 | AWG#16-#14 | 4.06mm |
| M6350FN(S)-8(8)-R1 | 4.20 | 0.75 | 7.80 | 5.87 | 6.15 | 7.60 | 0.35 | 23.90 | 30.40 | AWG#22-#18 | 5.84mm |
| M6350FN(S)-8(8)-R | 4.20 | 0.75 | 7.80 | 3.80 | 5.30 | 7.60 | 0.35 | 21.90 | 28.30 | AWG#22-#18 | 3.05mm |
| M6350FN(S)-8(8)-b1 | 4.70 | 0.75 | 7.80 | 5.87 | 6.85 | 8.30 | 0.35 | 23.90 | 30.30 | AWG#16-#14 | 6.60mm |
| M6350FN(S)-8(8)-b | 4.70 | 0.75 | 7.80 | 5.87 | 4.30 | 5.80 | 0.35 | 21.90 | 28.30 | AWG#16-#14 | 4.06mm |
| M | 6350 | F | N | S | 8 | (5) | R1 |
| A | B | C | D | E | F | G | H |
Terminal Type = Receptacle
Proprietary Name = Ultra-Fast
Receptacle Style = Straight
Mating Area Interface Dimensions = 4.75 x 0.5 mm/4.75-x0.8mm
Brass Material
Insulation Diameter = 3.05 Max. mm
Wire Range =UL1007 22-18AWG
Packaging method: strip
