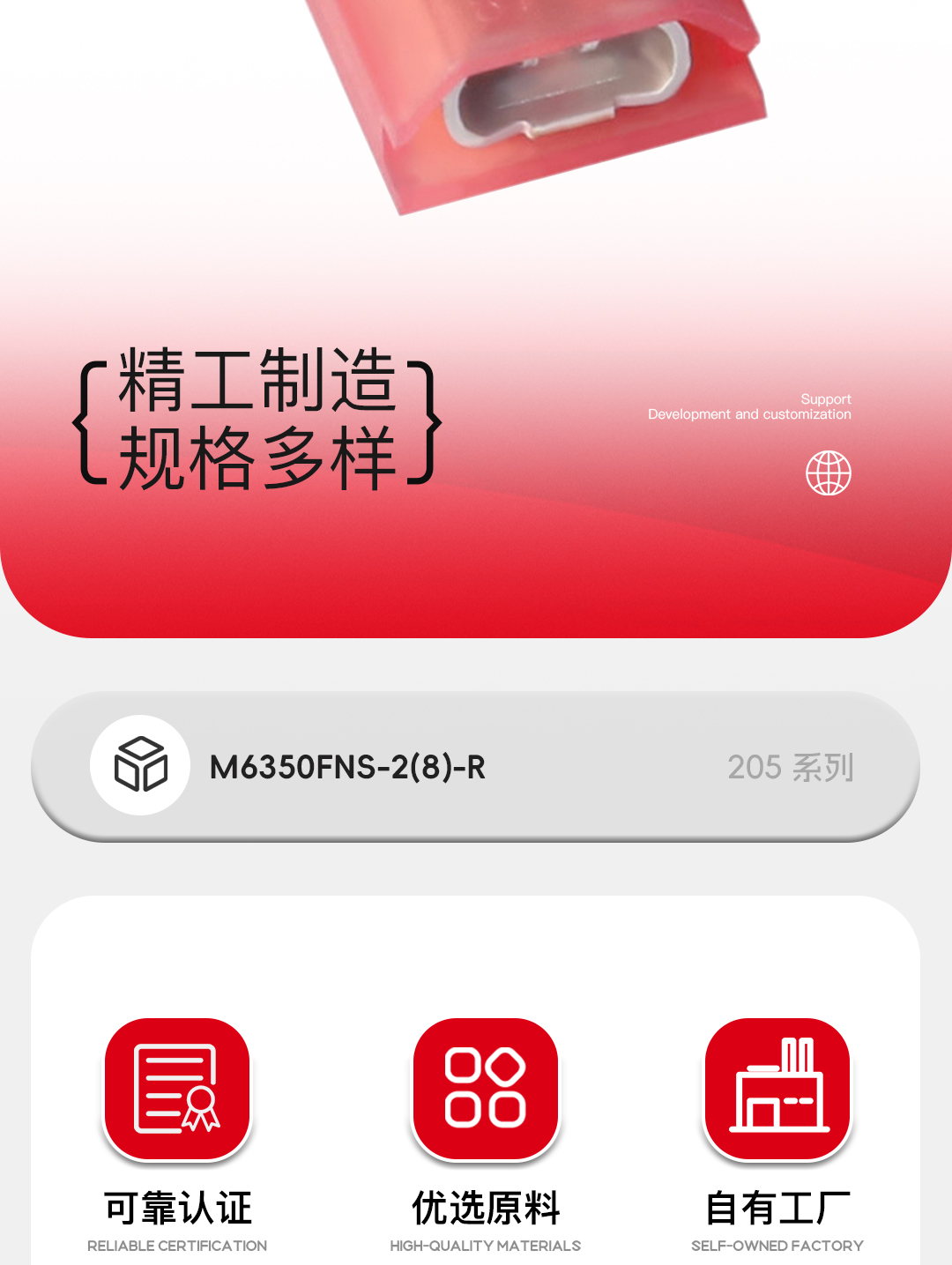

M6350FNL-2（8）-R
HRB
M6350FNL-2（8）-R
(205) faston terminal catalog.pdf
| Part No. | A | B | C | D | E | F | G | H | Wire size | Ins Dia. max |
| M6350FN(S)-2(5)-R | 0.75 | 9.75 | 6.50 | 21.80 | 5.30 | 5.00 | 28.2 | 18.85 | AWG#22-18 | 3.05mm |
| M6350FN(S)-2(5)-b | 0.75 | 9.75 | 6.50 | 21.80 | 6.10 | 5.00 | 28.2 | 18.85 | AWG#22-18 | 5.84mm |
| M6350FN(S)-2(8)-R | 0.75 | 9.75 | 6.50 | 21.80 | 5.30 | 5.00 | 28.2 | 18.85 | AWG16-14 | 4.06mm |
| M6350FN(S)-2(8)-b | 0.75 | 9.75 | 6.50 | 21.80 | 6.10 | 5.00 | 28.2 | 18.85 | AWG16-14 | 6.60mm |
| M | 6350 | F | N | S | 8 | (5) | R1 |
| A | B | C | D | E | F | G | H |
A. Type: M=Finished

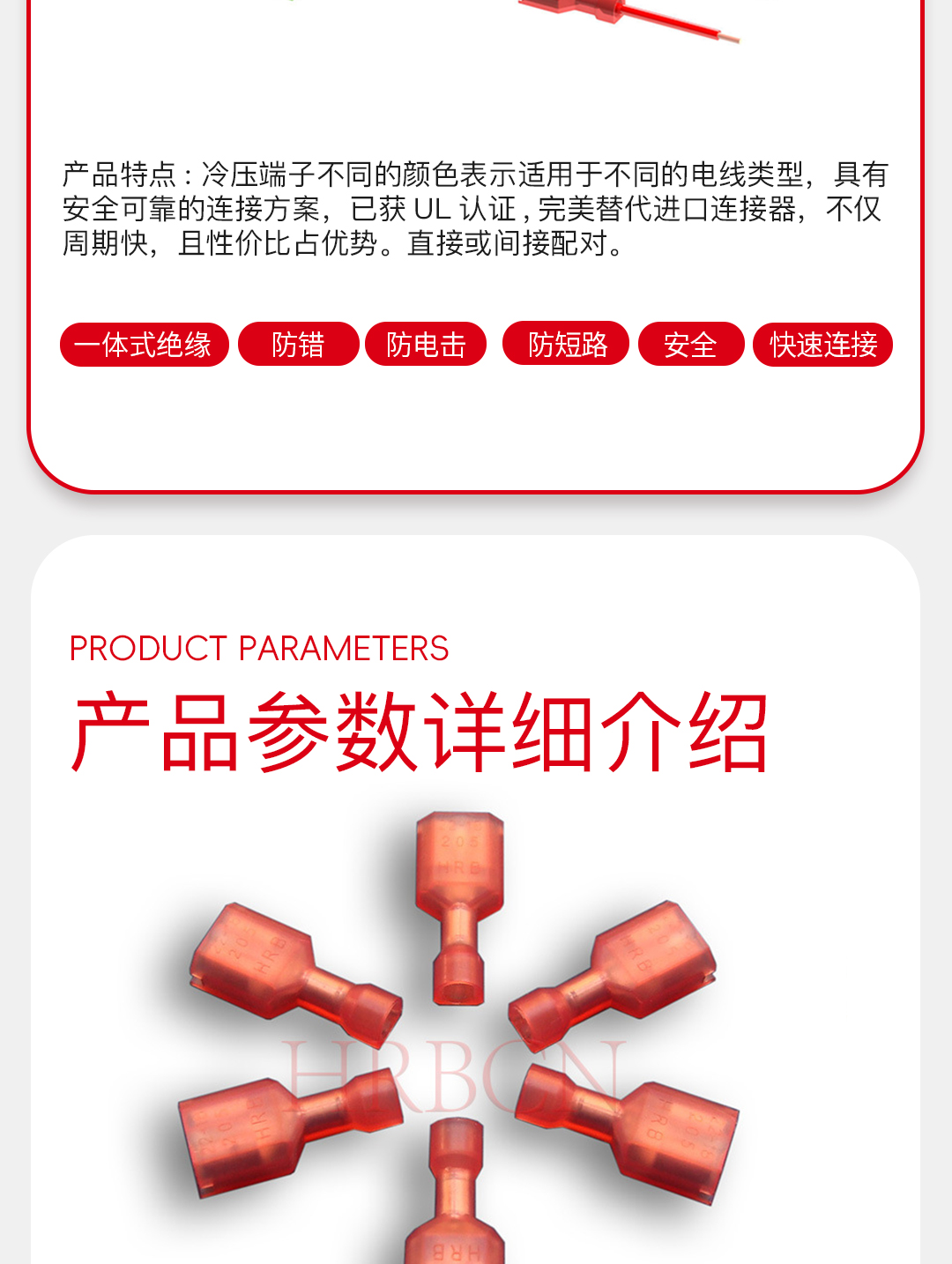

B. Product Type: 6350=Fully insulated Straight Female Terminal
7600=Fully insulated Flag Terminal
C. F=All inclusive insulation
D. N=Nylon
E. Packaging method: S=strip L=loose piece
F. Series: 1=2.8mm(0.110 in.) 2=5.2mm(0.205 in.)
8=4.8mm(0.187 in.) 5=6.3mm(0.250in.)
G. 5=thickness 0.50mm(0.020in.) 8=thickness 0.80mm(0.032 in.)
H. R=Red(22-18 AWG) R1=Conductor insulation max. diameter of 3.80mm
b=blue(16-14 AWG) b1=Conductor insulation max. diameter of 4.50mm
Y=Yellow(12-10AWG)
| M | 6351 | F | N | S | 8 | (5) | R1 | (A) |
| A | B | C | D | E | F | G | H | J |
A. Type: M=Finished
B. Product Type: 6351=Ultra-fast fully insulated FASTON Tabs
C. F=Fully insulated
D. N=Nylon B=Brass
E. Packaging method: S=strip L=loose piece
F. Series: 1=2.8mm(0.110 in.) 2=5.2mm(0.205 in.)
8=4.8mm(0.187 in.) 5=6.3mm(0.250in.)
G. 5=thickness 0.50mm(0.020in.) 8=thickness 0.80mm(0.032 in.)
H. R=Red(22-18 AWG) R1=Conductor insulation max. diameter of 3.80mm
b=blue(16-14 AWG) b1=Conductor insulation max. diameter of 4.50mm
J. A=Blind hole type blank=Through hole type
(205) faston terminal catalog.pdf
| Part No. | A | B | C | D | E | F | G | H | Wire size | Ins Dia. max |
| M6350FN(S)-2(5)-R | 0.75 | 9.75 | 6.50 | 21.80 | 5.30 | 5.00 | 28.2 | 18.85 | AWG#22-18 | 3.05mm |
| M6350FN(S)-2(5)-b | 0.75 | 9.75 | 6.50 | 21.80 | 6.10 | 5.00 | 28.2 | 18.85 | AWG#22-18 | 5.84mm |
| M6350FN(S)-2(8)-R | 0.75 | 9.75 | 6.50 | 21.80 | 5.30 | 5.00 | 28.2 | 18.85 | AWG16-14 | 4.06mm |
| M6350FN(S)-2(8)-b | 0.75 | 9.75 | 6.50 | 21.80 | 6.10 | 5.00 | 28.2 | 18.85 | AWG16-14 | 6.60mm |
| M | 6350 | F | N | S | 8 | (5) | R1 |
| A | B | C | D | E | F | G | H |
A. Type: M=Finished
B. Product Type: 6350=Fully insulated Straight Female Terminal
7600=Fully insulated Flag Terminal
C. F=All inclusive insulation
D. N=Nylon
E. Packaging method: S=strip L=loose piece
F. Series: 1=2.8mm(0.110 in.) 2=5.2mm(0.205 in.)
8=4.8mm(0.187 in.) 5=6.3mm(0.250in.)
G. 5=thickness 0.50mm(0.020in.) 8=thickness 0.80mm(0.032 in.)
H. R=Red(22-18 AWG) R1=Conductor insulation max. diameter of 3.80mm
b=blue(16-14 AWG) b1=Conductor insulation max. diameter of 4.50mm
Y=Yellow(12-10AWG)
| M | 6351 | F | N | S | 8 | (5) | R1 | (A) |
| A | B | C | D | E | F | G | H | J |
A. Type: M=Finished
B. Product Type: 6351=Ultra-fast fully insulated FASTON Tabs
C. F=Fully insulated
D. N=Nylon B=Brass
E. Packaging method: S=strip L=loose piece
F. Series: 1=2.8mm(0.110 in.) 2=5.2mm(0.205 in.)
8=4.8mm(0.187 in.) 5=6.3mm(0.250in.)
G. 5=thickness 0.50mm(0.020in.) 8=thickness 0.80mm(0.032 in.)
H. R=Red(22-18 AWG) R1=Conductor insulation max. diameter of 3.80mm
b=blue(16-14 AWG) b1=Conductor insulation max. diameter of 4.50mm
J. A=Blind hole type blank=Through hole type
