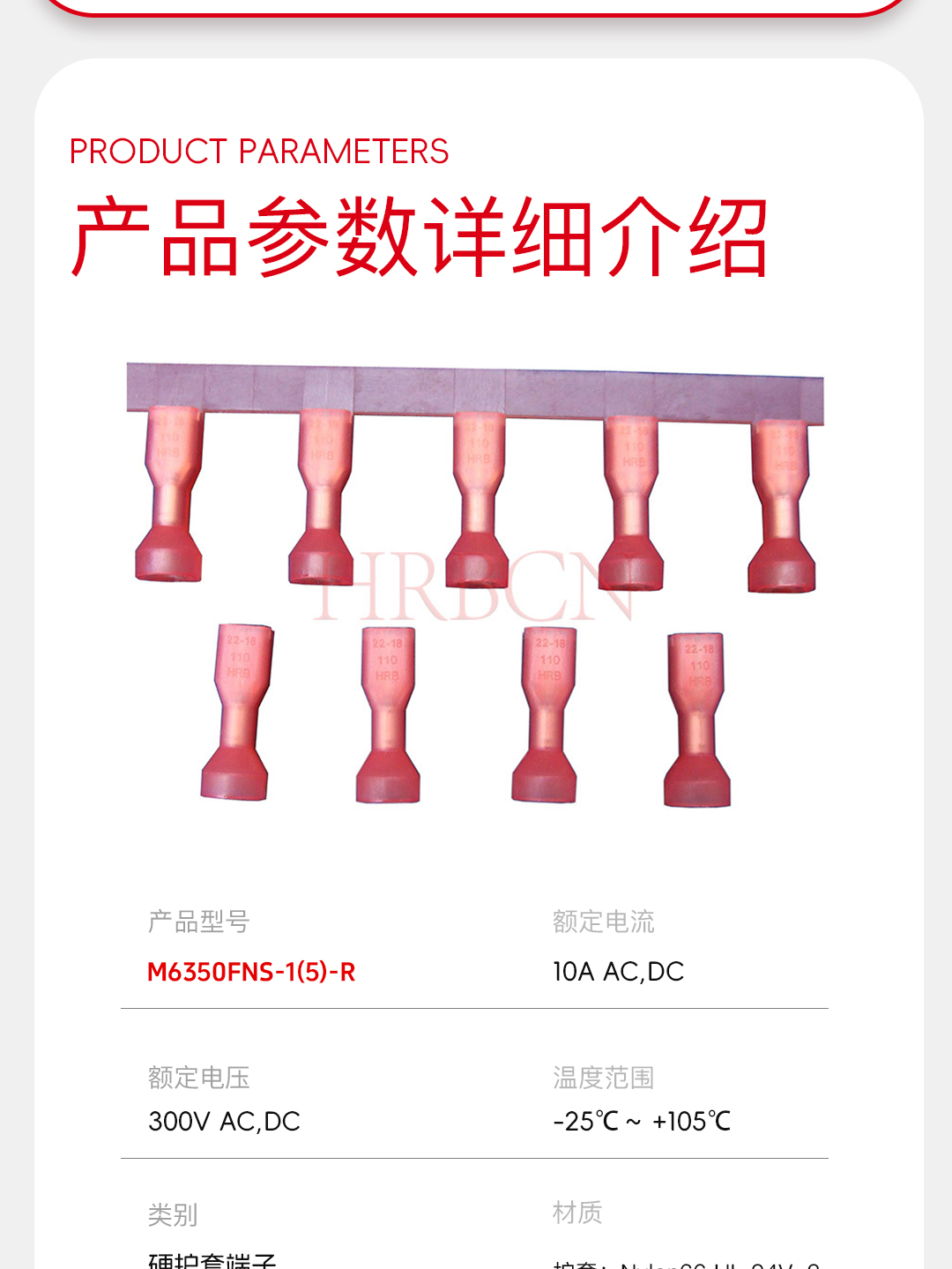

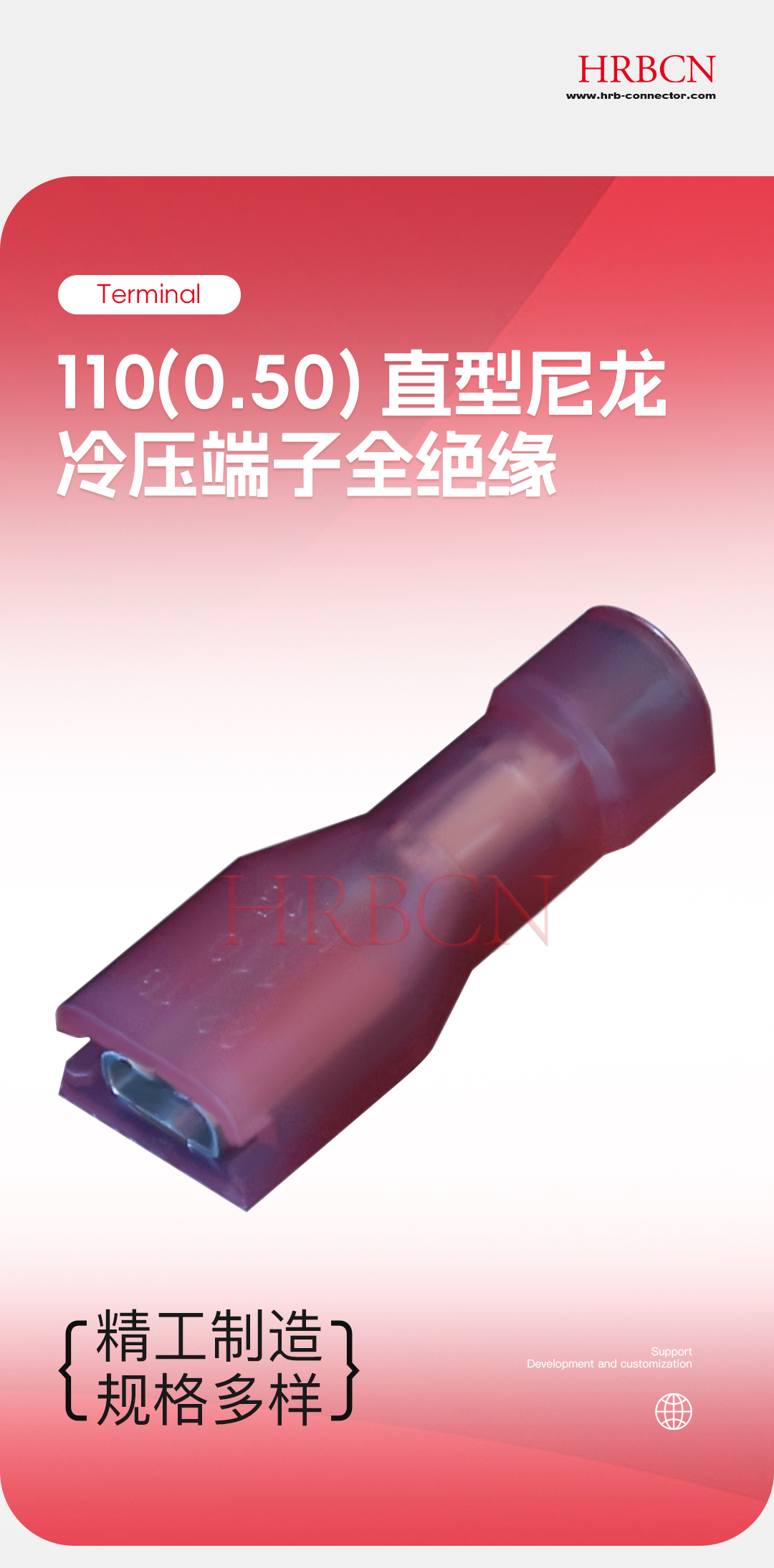

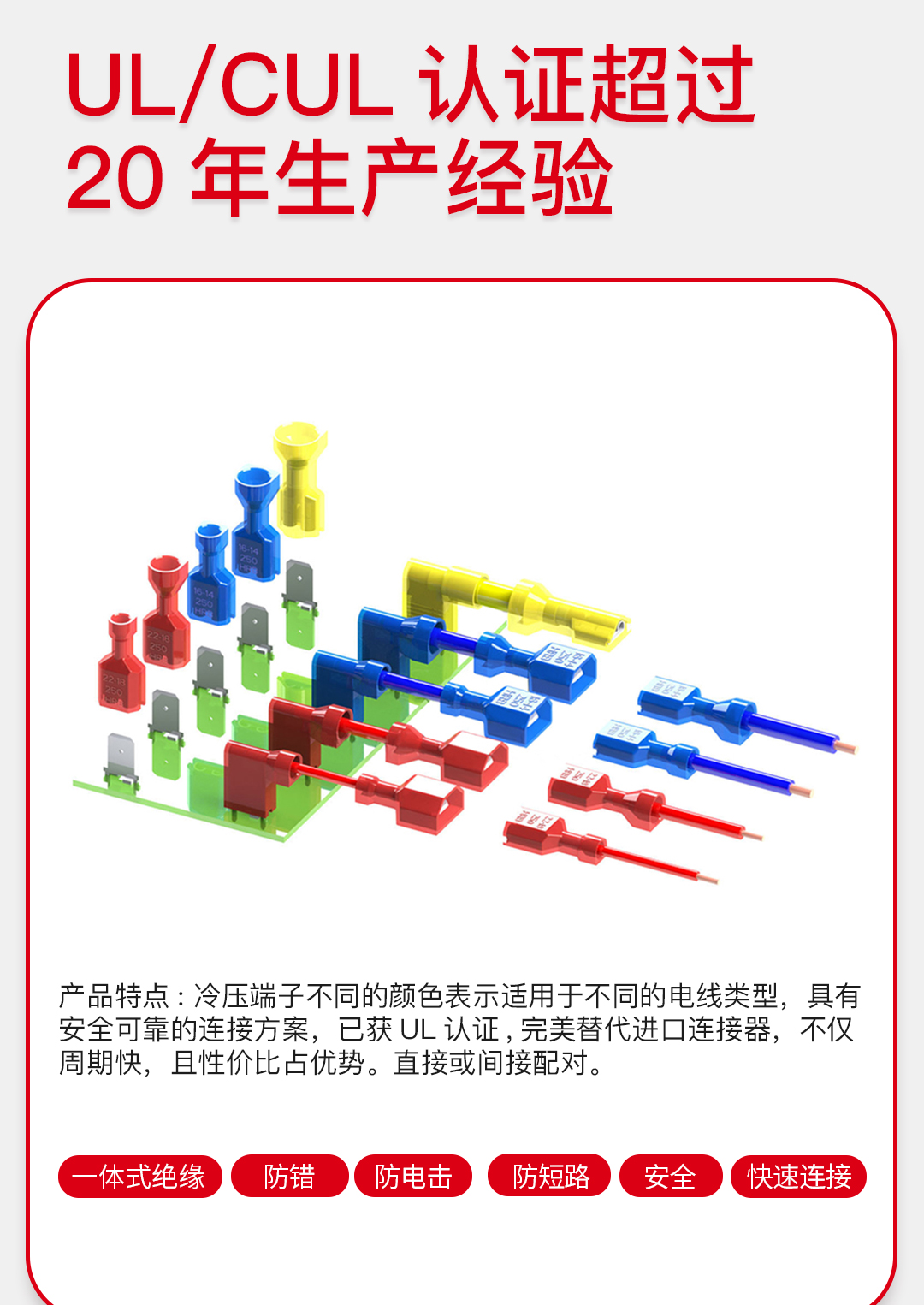

HRB 110尼龙硬护套母端2.8×0.5mm AWG#22-18连绕端子

公端宽度为 0.110inch (2.8mm),110全绝缘端子
状态:
数量:
  • M6350FNS-1(5)-R

  • HRB

  • M6350FNS-1(5)-R

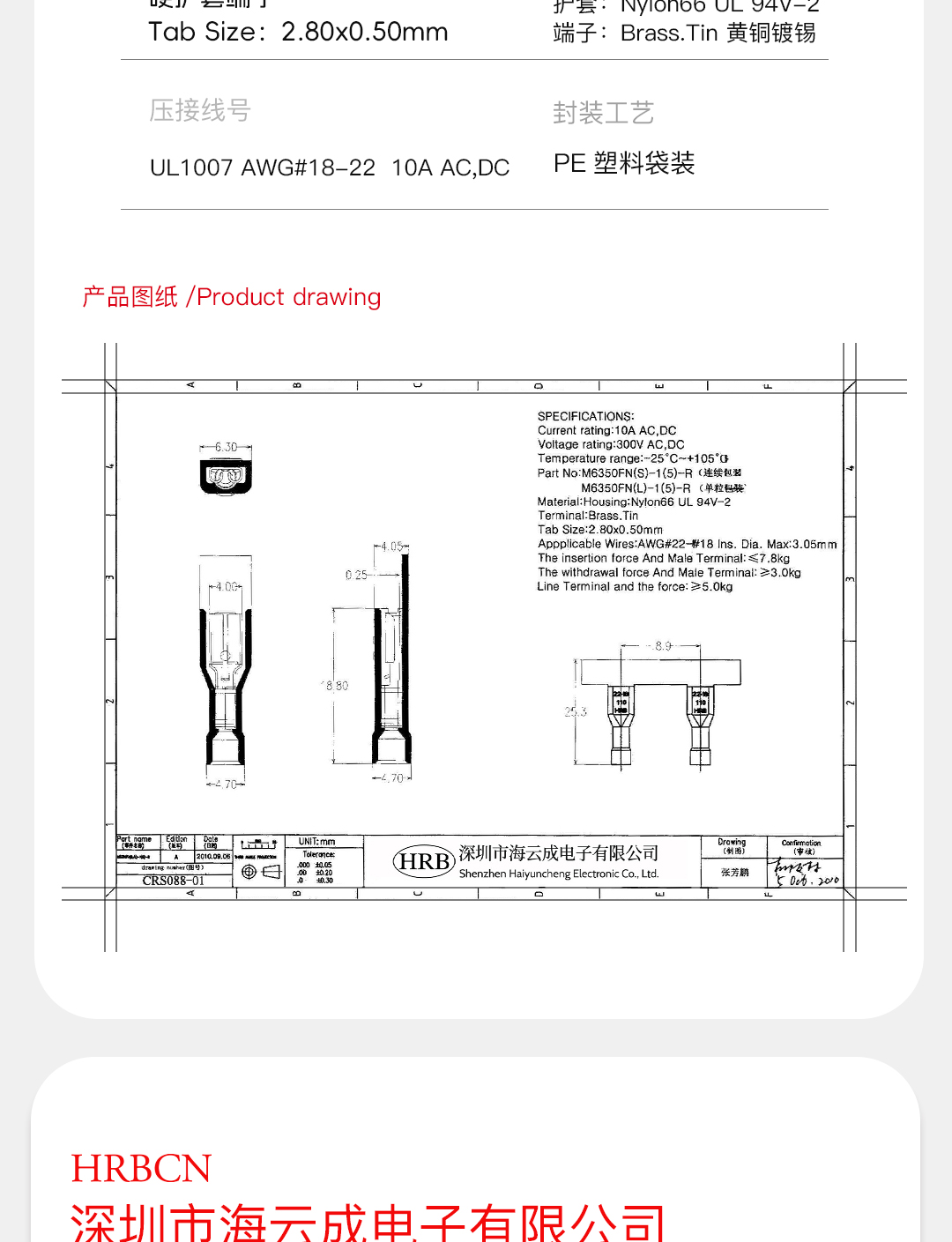

  (110) faston terminal catalog.pdf

       Part No.        A        B        C        D        E        F        G        H        I        Wire size        Ins. Dia. max
       M6350FN(S)-1(8)-R        4.00        6.30        4.70        4.05        0.25        18.80        4.70        18.90        27.30        AWG#22-#18        3.05mm
       M6350FN(S)-1(8)-R1        4.00        6.30        7.60        4.05        0.25        20.80        7.60        18.90        25.30        AWG#22-#18        5.84mm
       M6350FN(S)-1(8)-b        4.00        6.30        5.80        4.65        0.25        19.80        5.85        18.90        25.30        AWG#16-#14        4.06mm
       M6350FN(S)-1(8)-b1        4.00        6.30        8.30        4.65        0.25        21.80        8.35        18.90        27.30        AWG#16-#14        6.60mm
       M6350FN(S)-1(5)-R        4.00        6.30        4.70        4.05        0.25        18.80        4.70        18.90        27.30        AWG#22-#18        3.05mm
       M6350FN(S)-1(5)-R1        4.00        6.30        7.60        4.05        0.25        20.80        7.60        18.90        25.30        AWG#22-#18        5.84mm
       M6350FN(S)-1(5)-b        4.00        6.30        5.80        4.65        0.25        19.80        5.85        18.90        25.30        AWG#16-#14        4.06mm
       M6350FN(S)-1(5)-b1        4.00        6.30        8.30        4.65        0.25        21.80        8.35        18.90        27.30        AWG#16-#14        6.60mm
       M6350FN(S)-1(5)-p        4.00        6.20        3.60        4.00        0.25        18.80        3.80        18.90        25.30        AWG#26-#22        2.50mm
       M6350FN(S)-1(8)-p        4.00        6.20        3.60        4.00        0.25        18.80        3.80        18.90        25.30        AWG#26-#22        2.50mm



       M        6350        F        N        S        8        (5)        R1
       A        B        C        D        E        F        G        H


Proprietary Name = Ultra-Fast

Receptacle Style = Straight

Mating Area Interface Dimensions =2.79 x 0.5 mm/2.79-x0.8mm

Brass Material

Insulation Diameter =3.05mm Max.

Wire Range =UL1007   22-18AWG


1) Current Rating: AWG#22 to#18: 10A AC, DC

                              AWG#16  to#14: 15A AC, DC

2) Voltage Rating: 300V AC, DC

3) Operating Temperature: -25 ºC to +105 ºC

4) Material: Housing: Nylon66 UL 94V-2

                  Terminal: Brass. Tin-plated

5) Tab Size: 2.8*0.8mm or 2.8*0.5mm

6) The insertion force and male terminal: 7.8kg(max.)

7) The withdrawal force and male terminal: 3.0kg(min.)

8)  Cripm tensile strength: AWG#22 to #18: 5.0kg(min.)

                                          AWG#16 to #14: 10.0kg(min.)

9) cUL file No.: E322751
