M6350FNL-1（8）-R
HRB
M6350FNL-1（8）-R
(110) faston terminal catalog.pdf
| Part No. | A | B | C | D | E | F | G | H | I | Wire size | Ins. Dia. max |
| M6350FN(S)-1(8)-R | 4.00 | 6.30 | 4.70 | 4.05 | 0.25 | 18.80 | 4.70 | 18.90 | 27.30 | AWG#22-#18 | 3.05mm |
| M6350FN(S)-1(8)-R1 | 4.00 | 6.30 | 7.60 | 4.05 | 0.25 | 20.80 | 7.60 | 18.90 | 25.30 | AWG#22-#18 | 5.84mm |
| M6350FN(S)-1(8)-b | 4.00 | 6.30 | 5.80 | 4.65 | 0.25 | 19.80 | 5.85 | 18.90 | 25.30 | AWG#16-#14 | 4.06mm |
| M6350FN(S)-1(8)-b1 | 4.00 | 6.30 | 8.30 | 4.65 | 0.25 | 21.80 | 8.35 | 18.90 | 27.30 | AWG#16-#14 | 6.60mm |
| M6350FN(S)-1(5)-R | 4.00 | 6.30 | 4.70 | 4.05 | 0.25 | 18.80 | 4.70 | 18.90 | 27.30 | AWG#22-#18 | 3.05mm |
| M6350FN(S)-1(5)-R1 | 4.00 | 6.30 | 7.60 | 4.05 | 0.25 | 20.80 | 7.60 | 18.90 | 25.30 | AWG#22-#18 | 5.84mm |
| M6350FN(S)-1(5)-b | 4.00 | 6.30 | 5.80 | 4.65 | 0.25 | 19.80 | 5.85 | 18.90 | 25.30 | AWG#16-#14 | 4.06mm |
| M6350FN(S)-1(5)-b1 | 4.00 | 6.30 | 8.30 | 4.65 | 0.25 | 21.80 | 8.35 | 18.90 | 27.30 | AWG#16-#14 | 6.60mm |
| M6350FN(S)-1(5)-p | 4.00 | 6.20 | 3.60 | 4.00 | 0.25 | 18.80 | 3.80 | 18.90 | 25.30 | AWG#26-#22 | 2.50mm |
| M6350FN(S)-1(8)-p | 4.00 | 6.20 | 3.60 | 4.00 | 0.25 | 18.80 | 3.80 | 18.90 | 25.30 | AWG#26-#22 | 2.50mm |
| M | 6350 | F | N | S | 8 | (5) | R1 |
| A | B | C | D | E | F | G | H |

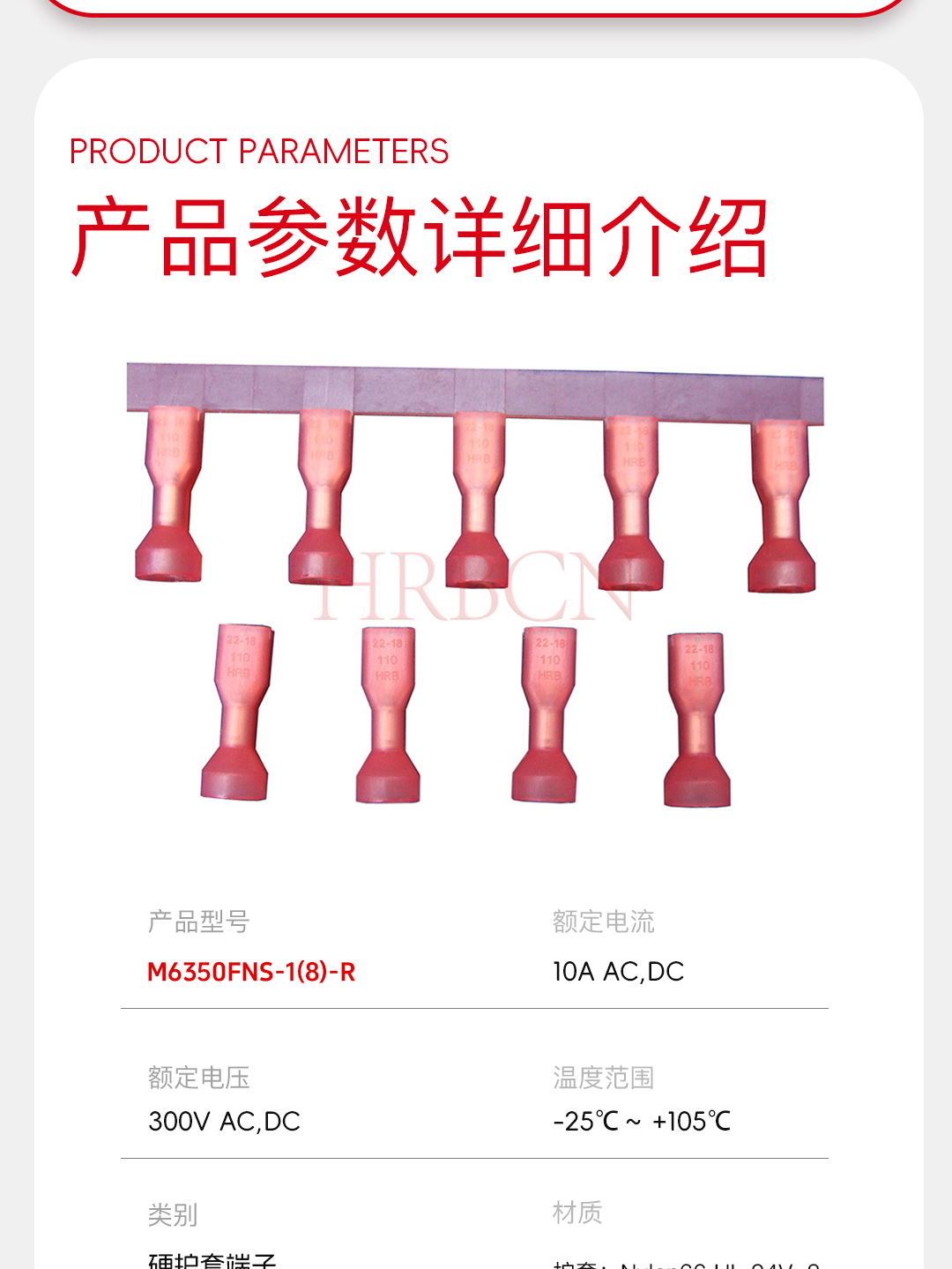

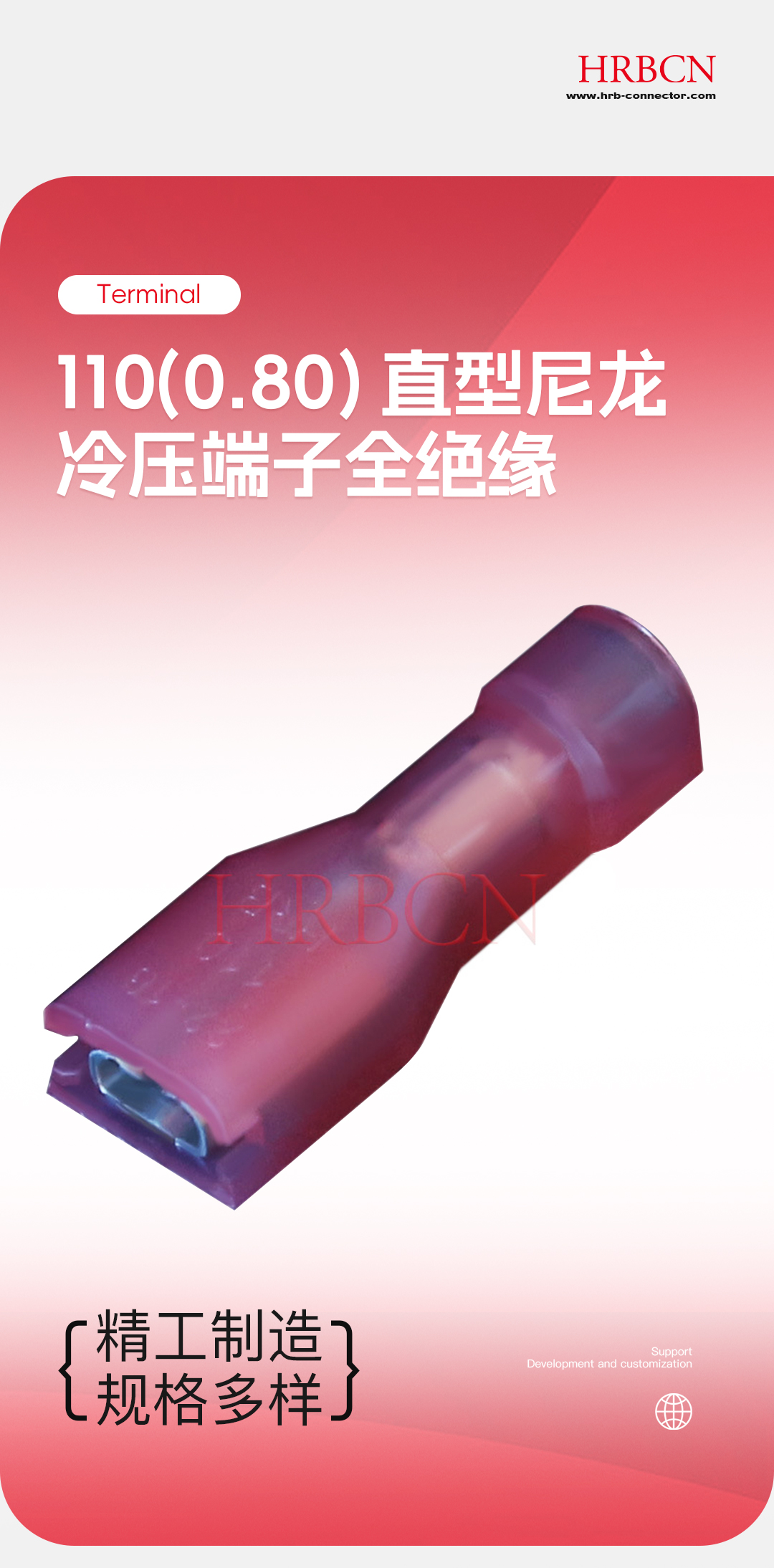

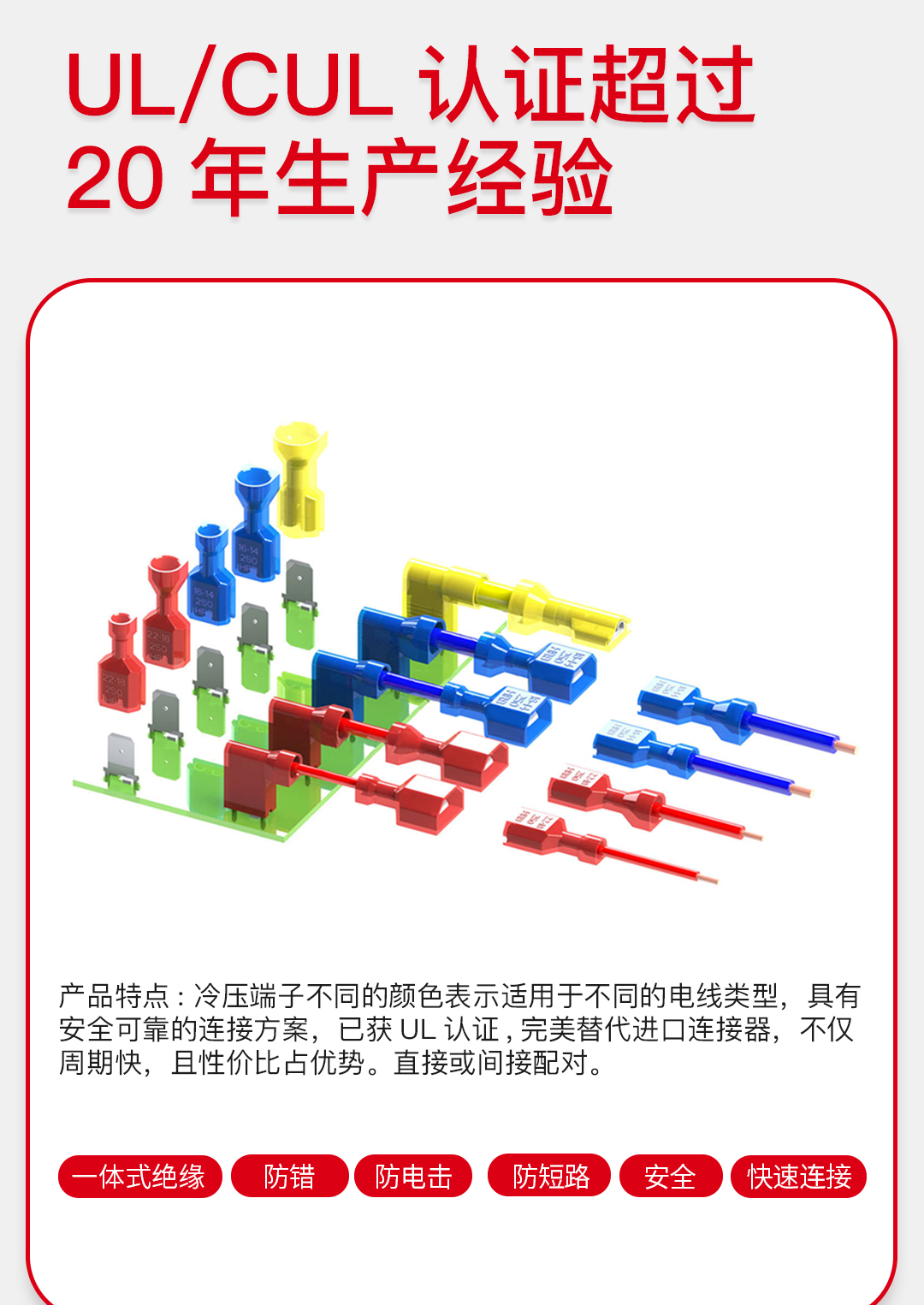

erminal Type = Receptacle
Proprietary Name = Ultra-Fast
Receptacle Style = Straight
Mating Area Interface Dimensions =2.79 x 0.5 mm/2.79-x0.8mm
Brass Material
Insulation Diameter =3.05mm Max.
Wire Range =UL1007 22-18AWG
Packaging method: loose piece
