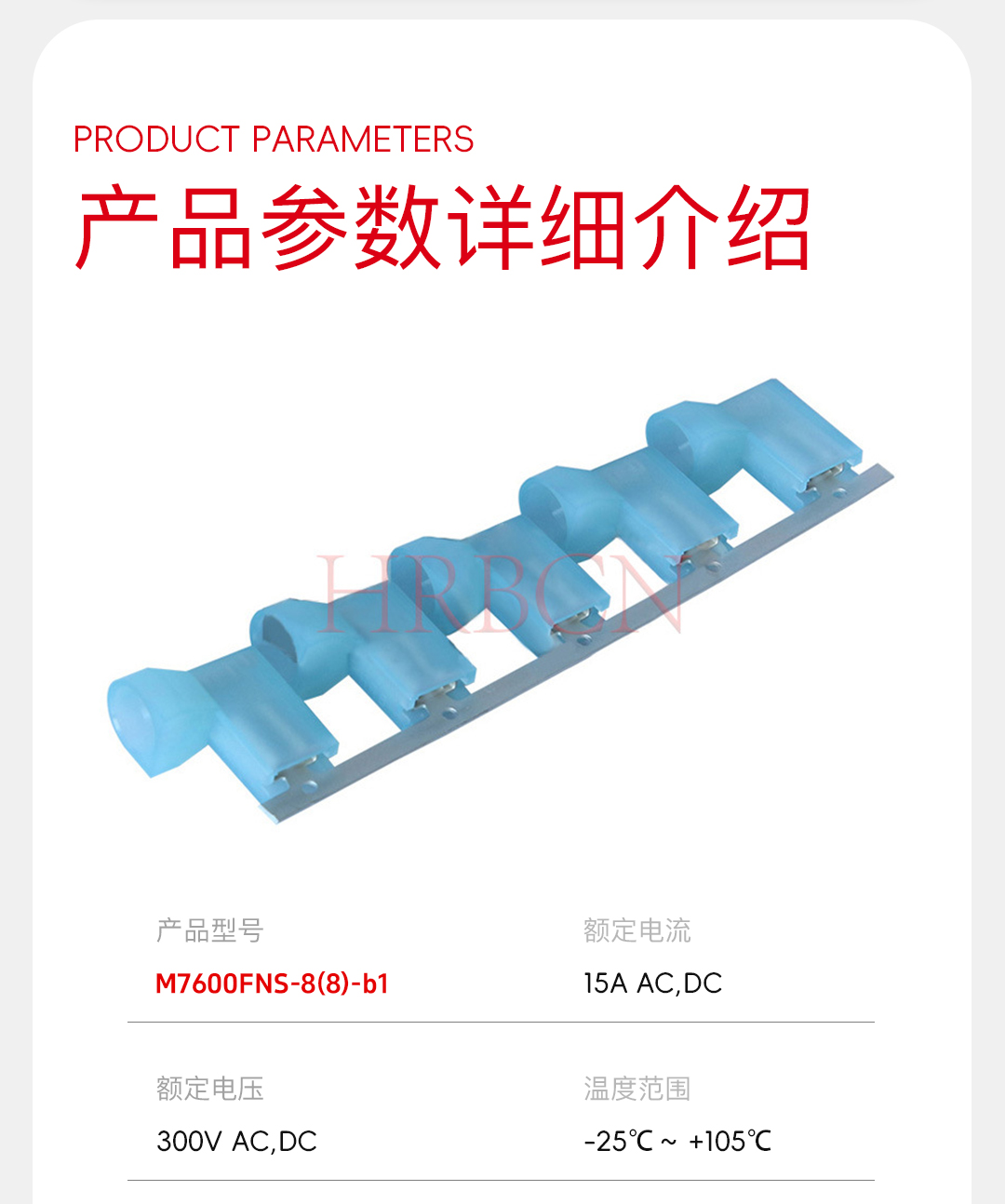

M7600FN（S）-8-（8）-b1
HRB
M7600FN（S）-8-（8）-b1
(187) faston flag type terminal.pdf
| Part No. | A | B | C | D | E | F | G | H | I | J | Wire size | Ins Dia. max |
| M7600FNS-8(5)-b | 4.70 | 6.40 | 8.30 | 5.20 | 16.45 | 6.40 | 0.40 | 2.30 | 17.30 | 19.80 | AWG#16-14 | 4.06mm |
| M7600FN(S)-8(8)-b | 4.70 | 6.40 | 8.30 | 5.20 | 16.45 | 6.40 | 0.40 | 2.30 | 17.30 | 19.80 | AWG#16-14 | 4.06mm |
| M7600FN(S)-8(5)-R | 4.70 | 6.00 | 8.30 | 5.88 | 16.20 | 6.20 | 0.40 | 1.70 | 17.30 | 19.80 | AWG#22-18 | 3.05mm |
| M7600FN(S)-8(8)-R | 4.70 | 6.00 | 8.30 | 5.88 | 16.20 | 6.20 | 0.40 | 1.70 | 17.30 | 19.80 | AWG#22-18 | 3.05mm |
| M7600FN(S)-8(5)-b1 | 4.70 | 8.30 | 8.30 | 5.88 | 17.20 | 8.30 | 0.40 | 2.30 | 17.30 | 20.50 | AWG#16-14 | 6.60mm |
| M7600FN(S)-8(8)-b1 | 4.70 | 8.30 | 8.30 | 5.88 | 17.20 | 8.30 | 0.40 | 2.30 | 17.30 | 20.50 | AWG#16-14 | 6.60mm |
| M7600FN(S)-8(5)-R1 | 4.70 | 8.30 | 8.30 | 5.88 | 17.20 | 8.30 | 0.40 | 1.70 | 17.30 | 20.50 | AWG#22-18 | 5.84mm |
| M7600FN(S)-8(8)-R1 | 4.70 | 8.30 | 8.30 | 5.88 | 17.20 | 8.30 | 0.40 | 1.70 | 17.30 | 20.50 | AWG#22-18 | 5.84mm |
| M | 6350 | F | N | S | 8 | (5) | R1 |
| A | B | C | D | E | F | G | H |

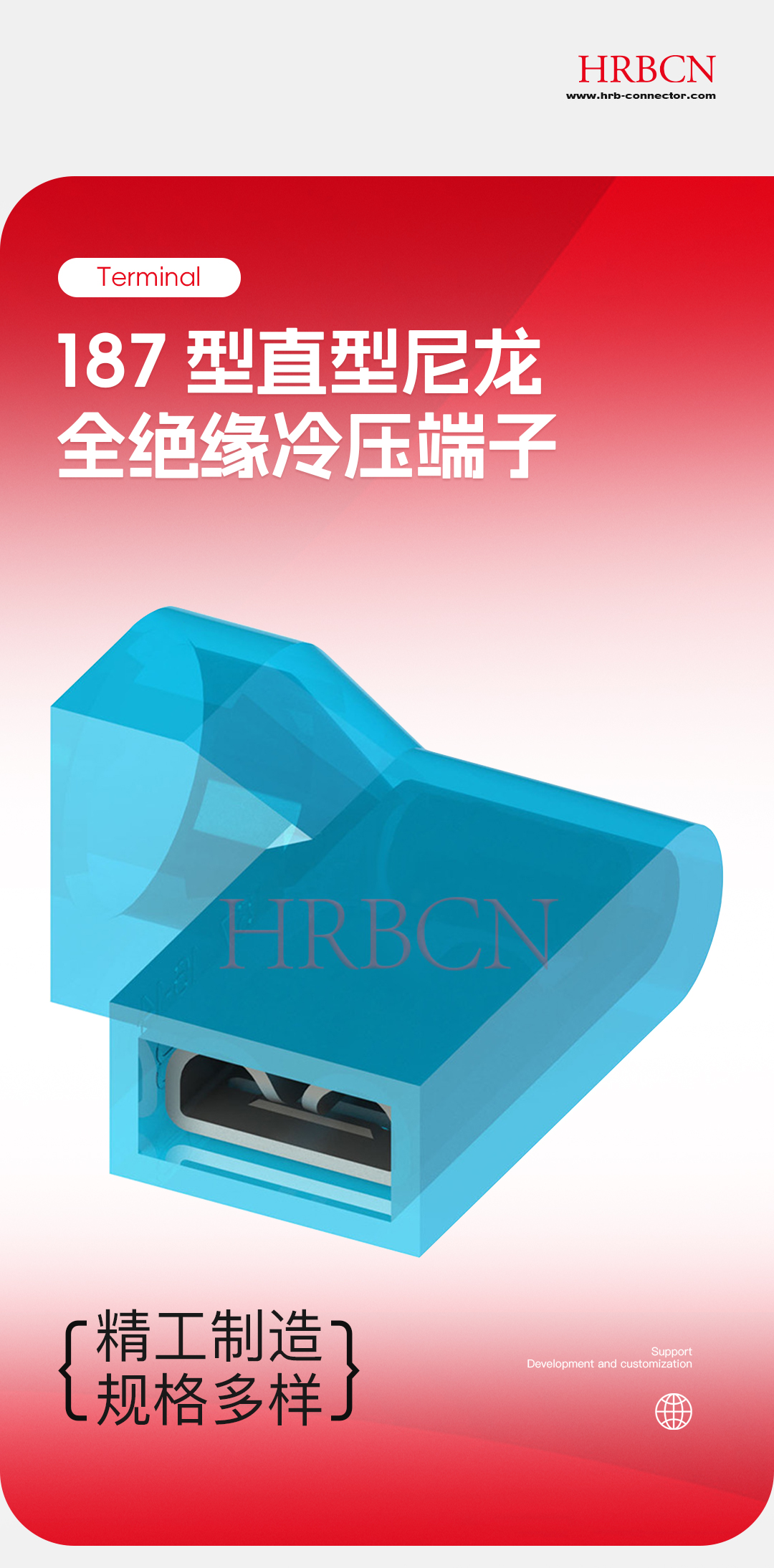

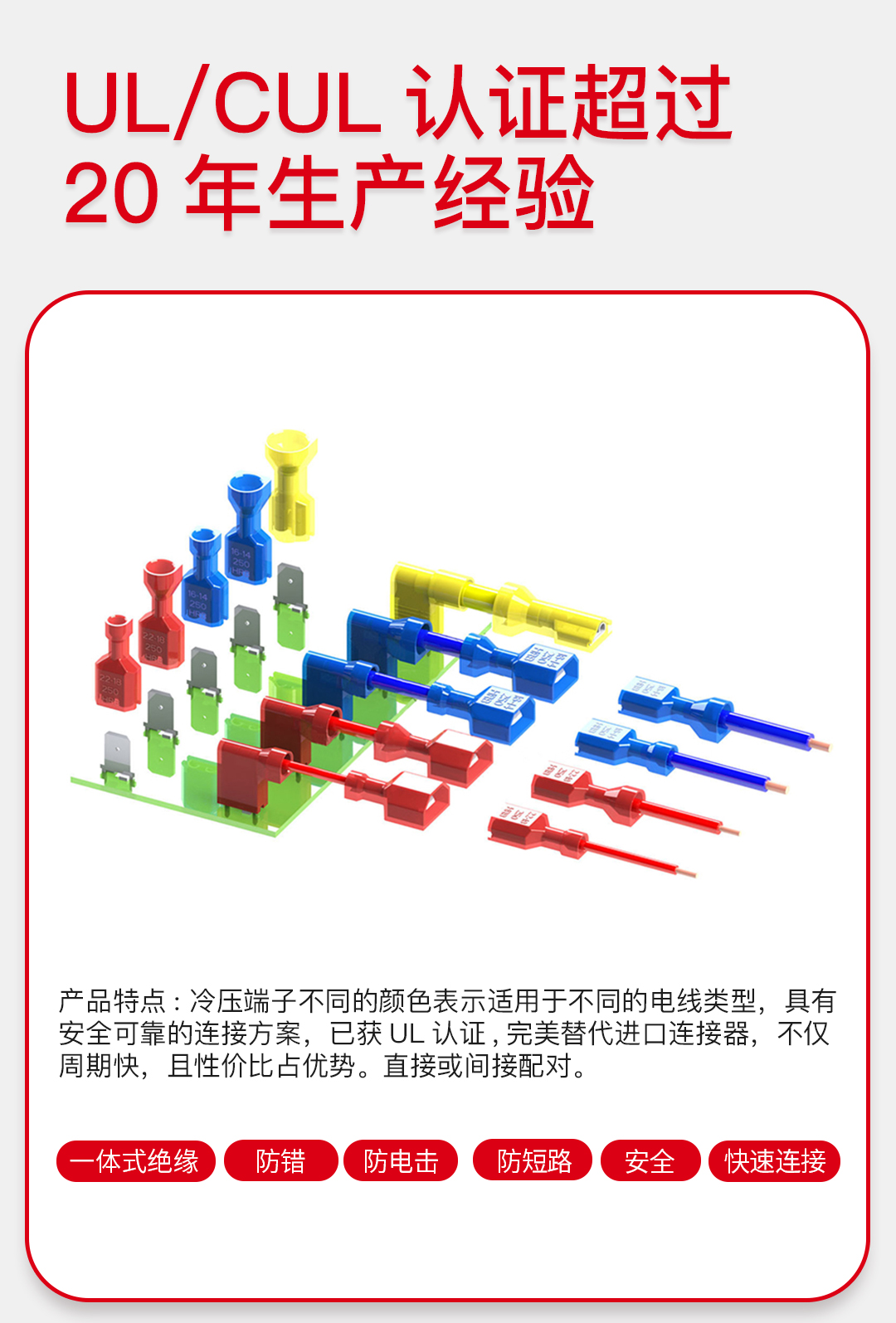

Terminal Type = Receptacle
Proprietary Name = Ultra-Fast
Receptacle Style = Flag
Mating Area Interface Dimensions = 4.75 x 0.8 mm/4.75 x 0.5 mm
Brass Material
Insulation Diameter = 4.06 Max. mm
Wire Range =UL1007 16-14AWG
Packaging method: strip
