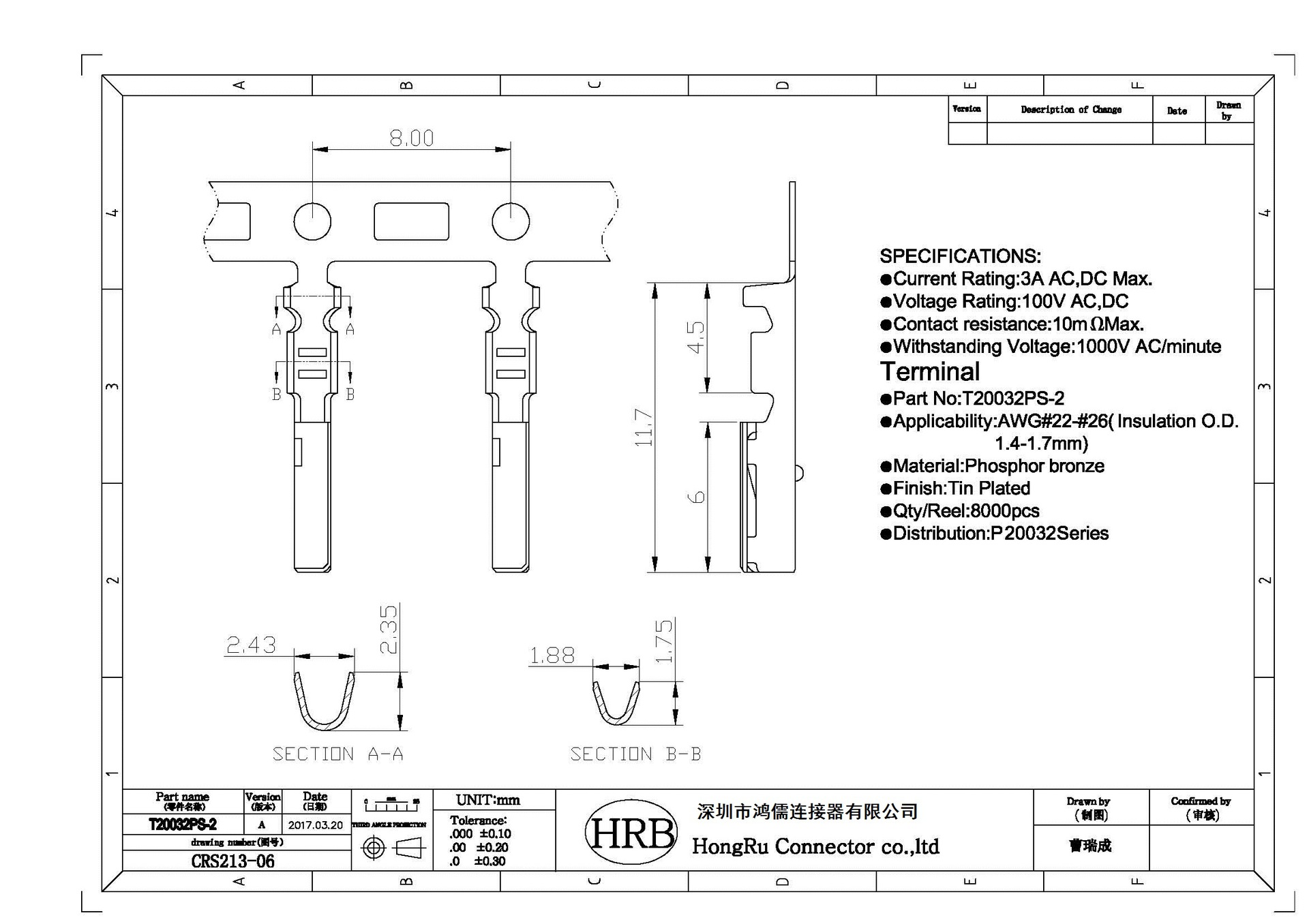

T20032PS-2
HRB
T20032PS-2
Most waterproof connectors are large in size, difficult to handle in a production environment and expensive. Meeting customer needs for a small form factor waterproof connector that is easy to handle and cost effective long been a challenge.
Wire to board waterproof electrical connectors meets the need for a small form factor waterproof connector. It has an IP67 waterproof rating per IEC 60529. It is on a 2.0mm pitch(contact to contact) and 4.0mm row to row spacing for double row versions. The overall size when mated is just 30.2mm for the wire to wire series 21.0m for the wire to PCB version.
线对板防水连接器:
Available in 2, 3 and 4 positions, wire to board waterproof connectors deliver a similiar cost effective solution by utilizing a phosphor bronze tin plated receptacle contact. As with the wire to wire version the wire to board version contact system has a 3 amp rating and handles 26-22AWG wires. Shrouded headers utilize a copper alloy tin plated contact and are available in a vertical or top entry, style and designed for general use as well as with resign coated (“potted”) PC boards. The header is also designed accept the wire to wire by this connector receptacle for maximum flexibility.
特征:
防水性能
固体橡胶密封
双弹簧结构
胶壳与端子紧锁
产品应用范围：
1. 电动汽车
2. 电动摩托车
3. 汽车摄像头内置防水
4. 汽车电池内置防水
5. 户外防水应用程序
