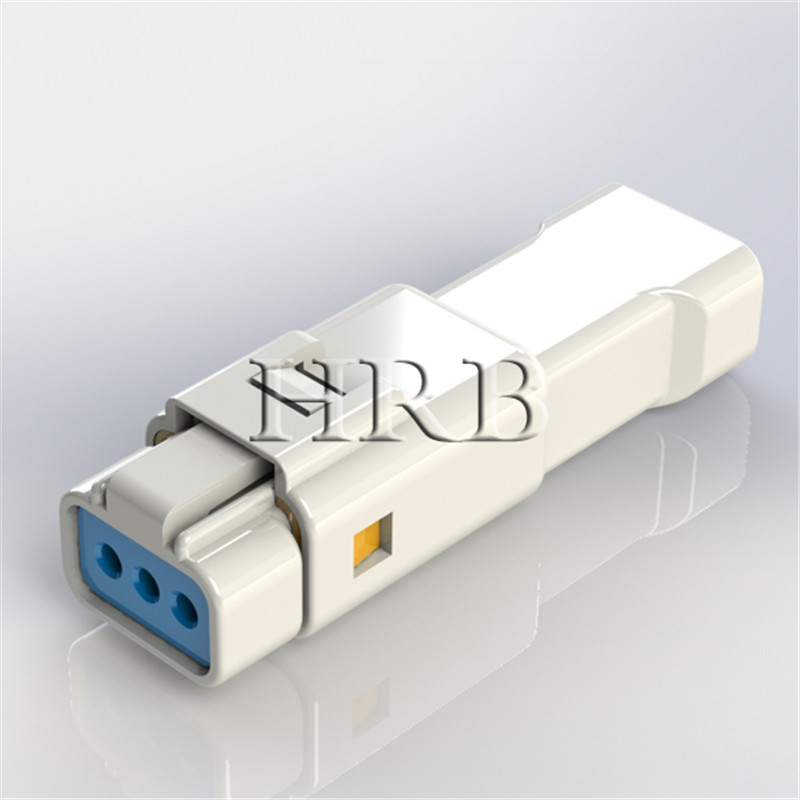

2.0mm汽车防水接插件 M20033-1*3-W

防水连接器3PIN,母胶壳
PBT UL94V-O材质
IP67防水等级
状态:
数量:
  • M20033-1x3-W

  • HRB

  • M20033-1x3-W

Most waterproof connectors are large in size, difficult to handle in a production environment and expensive. Meeting customer needs for a small form factor waterproof connector that is easy to handle and cost effective long been a challenge.



HRB wire to wire waterproof electrical connector meets the need for a small form factor waterproof connector. It has an IP67 waterproof rating per IEC 60529. It is on a 2.0mm pitch(contact to contact) and 4.0mm row to row spacing for double row versions. The overall size when mated is just 30.2mm for the wire to wire series 21.0m for the wire to PCB version.


线对线防水连接器:


Wire to wire waterproof connector is available in 2,3,4,5,6 and 8 positions. These waterproof connectors deliver a cost effective solution by utilizing a brass tin plated tab contact and a copper alloy tin plated receptacle contact. The contact system has a 3 amp rating and 26-22 AWG wires.


特征:


防水性能

固体橡胶密封

双弹簧结构

胶壳与端子紧锁


产品应用范围:


1. 电动汽车

2. 电动摩托车

3. 汽车摄像头内置防水

4. 汽车电池内置防水

5. 户外防水应用程序







1) Current Rating: 3A AC, DC max.

2) Voltage Rating: 100V AC, DC

3) Temperature range: -55 ºC to +85 ºC

4) Contact resistance: 10mΩ Max

5) Insulation Resistance:1000MΩ Min

6) Withstanding Voltage:1000V AC/minute

8) Waterproof grade: IPX7 of IEC 60529

9) Terminal Applicability: AWG#26-22(Insulation O.D.1.4-1.7mm)

10) Material: Phosphor Bronze

11) Finish: Tin plated(Ni 30-50U'' Sn 80-12U'')

12) Thickness: 0.25mm
